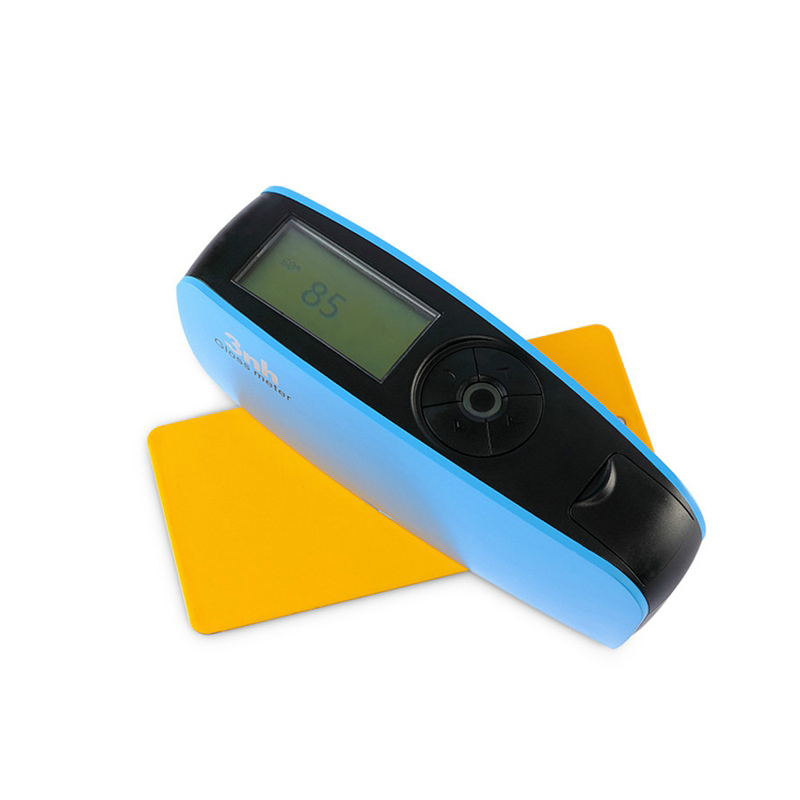

YG60S 60°Economic Gloss Meter
YG60S 60Economic Gloss Meter is independently developed by Shenzhen 3nh Technology Co. Ltd with independent intellectual property manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibrationa...
YG60S 60°Economic Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the second grade requirements of JJG696.
1. Elegant Design combined with aesthetics and ergonomics;
2. Meet the second grade requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813, ASTM523, GB/T9754;
Widely used in the filed of paints, coating, plastics, ink, rubber, printing, paper, glass, handware, ceramic, marble etc.
|Model||YG60S 60°Economic Gloss Meter|
|Measuring Area||60°: 0-200GU|
|Measuring Modes||Basic mode|
|Repeatability||0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU|
|Accurate||Conform with JJG696 second grade requirements of gloss meter|
|Auto Power-off Time||30s|
|Language||Chinese & English|
|Display||2.3 inch white and black screen|
|Power Supply||1pc dry-cell battery(can measure 10000 times) or use USB Charge|
|Operation Temperature Range||0-40℃（32-104° F）|
|Storage Temperature Range||-20-50℃（-4-122° F）|
|Humidity Range||< 85% RH, without condensation|
|Standard Accessories||User manual, calibration plate|
|Optional Accessories||Miniature printer|
|Notification: the technical parameter is only for reference|
