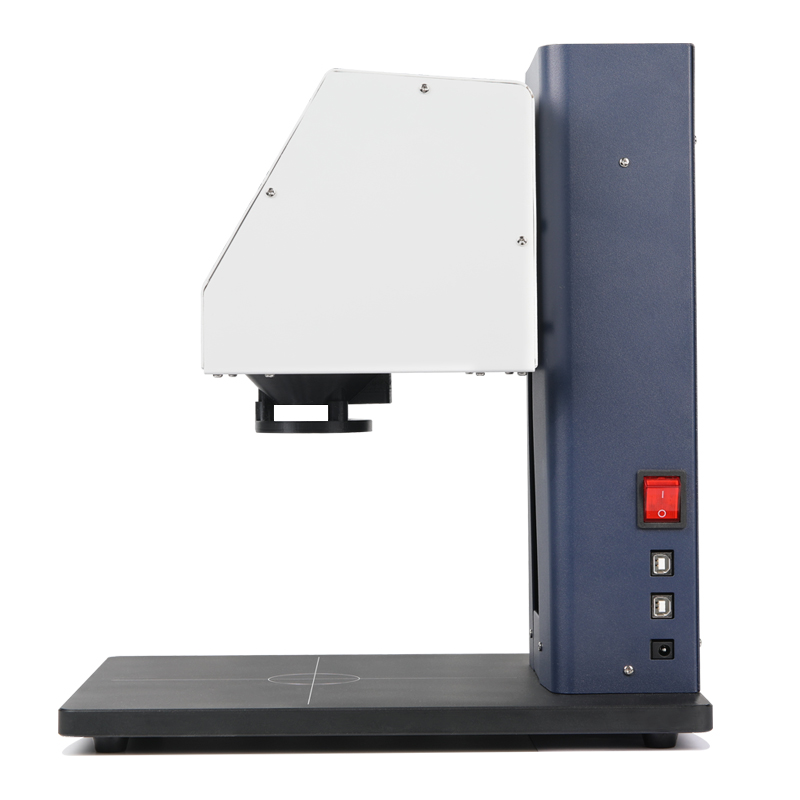

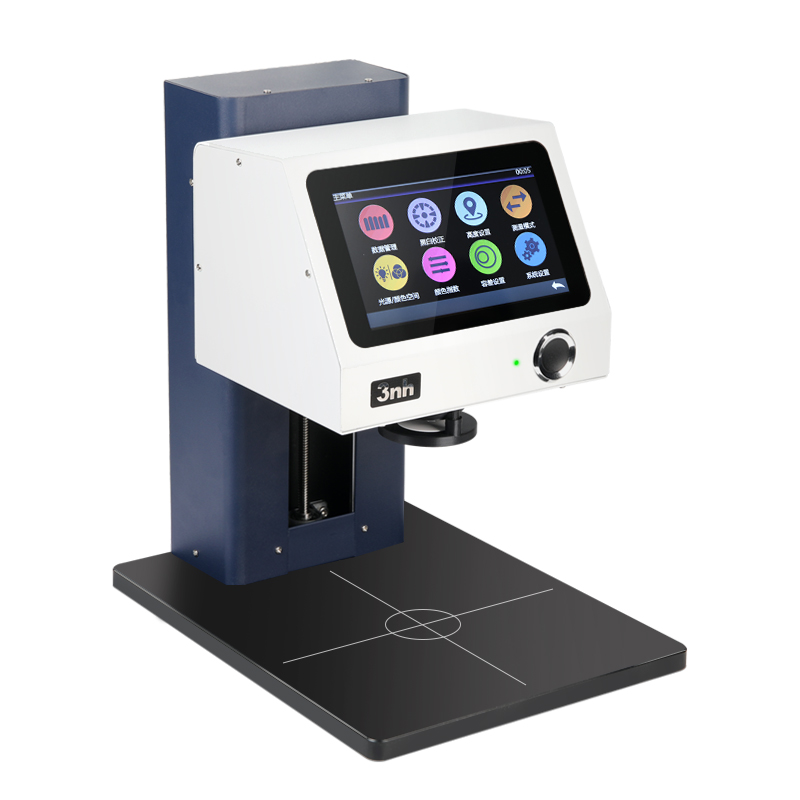

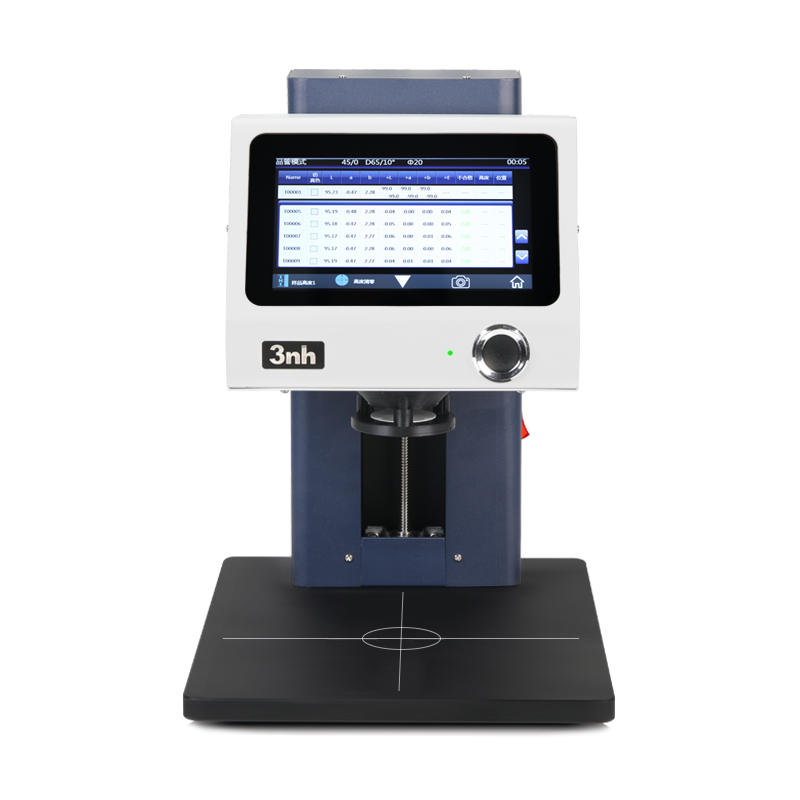

YL 4520 Non- contact benchtop spectrophotometer

YL4520 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent Itellctuall property. YL4560 has many features, like 7 Inches TFT capacltive touch screen display, full iluminants, UV light source, 45/...

YL4520 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent Itellctuall property. YL4560 has many features, like 7 Inches TFT capacltive touch screen display, full iluminants, UV light source, 45/0 optical geometry, which can achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission in laboratories and R& D industries; it can also be used for accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries.



PRODUCT FEATURES

  1. According to the actual height of the testing sample, the measuring probe can be moved up and down automatically and the height of the testing sample can be stored.
  2. TFT true color 7 inch capacitive touch screen; concave grating.

  3. 256 Image Element Double Array CMOS Image Sensor.

  4. Wavelength range: 400-700nm, 10nm output.

  5.  Lighting source: full spectrum LED light and UV light.

  6. Multiple measurement modes: Sample mode, QC mode, Continuous Statistical mode are optional to meet more customer needs.

  7.  Large capacity storage: Sample mode + QC mode: 40,000 Continuous statistics mode: 10,000

  8. Built- in camera locating.

  9. PC software has powerful expansion function.



APPLICATION INDUSTRY

45/0 non-contact benchtop spectrophotometer, which can achieve precise non- contact measurement between the measuring probe and the sample like liqulds, sauces, powders, etc. It can be aplied for accurate color analysls and transmission In laboratorles and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hyglene, plastic electronics, paint and ink, printing, ceramics and other industries .



Specification



Model
YL4520
Illumination system



45/0 method(45 ring-shaped illumination, vertical viewing);



Comply with the standards of CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833.



Features



45/0 non-contact benchtop spectrophotometer, which can achieve precise  non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics,

paint and ink, printing, ceramics and other industries . And it can be used for fluorescent sample measurement.



Light Source Full spectrum LED light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm/10nm output
Measured Reflectance Range 0~200%
Measured Reflectance Range Φ20mm
Non-contact distance 7.5mm
Sample height 0~150mm
Distance adjustment method Manual adjustment (test height can be stored)
Measuring mode Sample mode/QC Mode/Continuous statistics mode
Locating Method Camera View Finder Locating
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index



WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),



Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity



Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
 Measuring Time  About1.5s
 Data Storage Capacity  Sample mode + QC mode: 30,000,Continuous statistics mode: 10,000


Repeatability

Spectral reflectance: Standard deviation within 0.08%

Chromaticity value: Within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

 Inter-instrument Error Within ΔE*ab 0.25(Average for 12 BCRA Series II color tiles)
 Measurement Mode Single Measurement, Average Measurement(2 ~ 99 times)
 Dimension 330*250*370mm
 Weight  About 10 kg
 Power Supply DC 24V, 3A Power Adapter
 Illuminant Life Span  5 years, more than 3 million times measurements
 Display Screen 7" TFT Capacitive Screen-touch Display
 Data Port USB/RS-232
 Language Simplified Chinese,Tranditional Chinese,English
 Working Environment Temperature0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m
 Storage Environment Temperature-20~50℃; Humidity: 0~85% (No Condensation)
 Standard Accessory Power Adapter, User Manual, USB cable, Standard Calibration Board, Black calibration Board
 Notes The specifications are subject to change without notice.
